Datalogger testo 175 T2

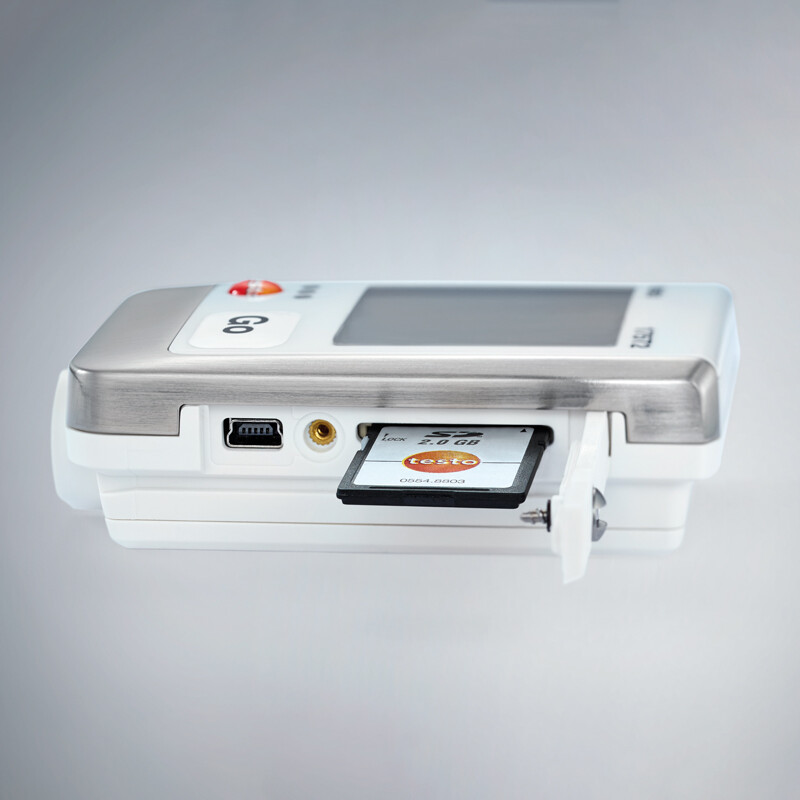

Datalogger testo 175 T2 SD card

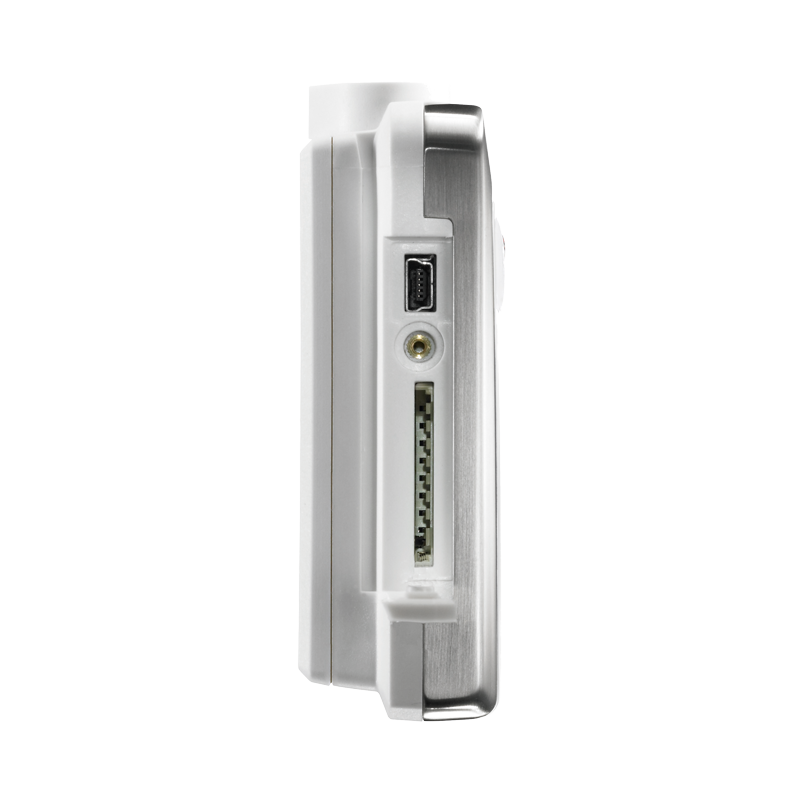

Datalogger testo 175 T2 input

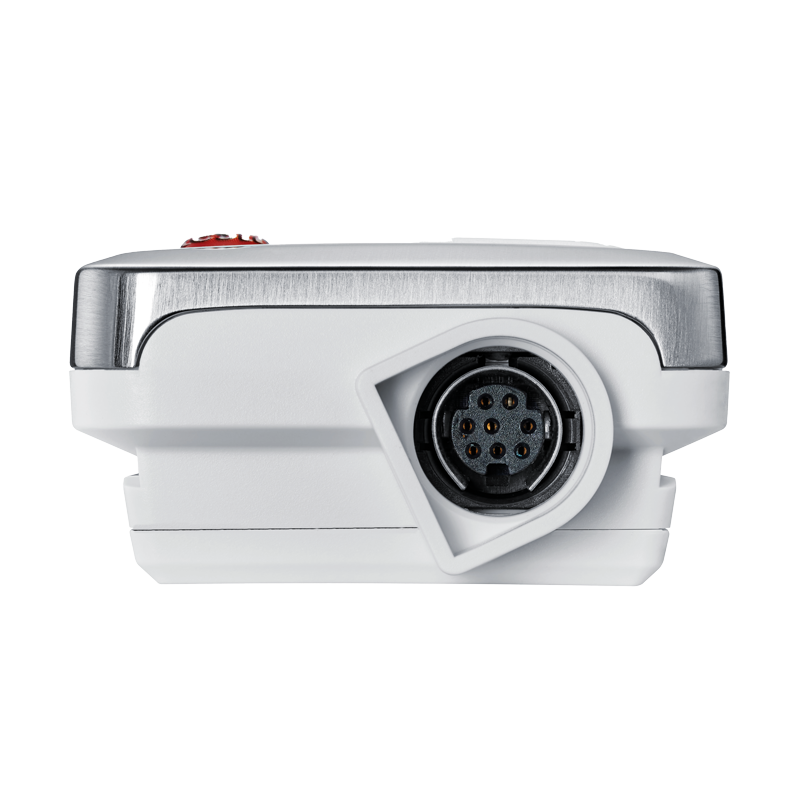

Datalogger testo 175 T2 underside
Datalogger testo 175 T2 freezer
Datalogger testo 175 T2 fridge

testo 175 T2 – two-channel temperature logger

2-channel temperature data logger with external sensor input

  • Efficient reading via USB or SD card
  • -40... +120°C
  • Internal NTC sensor and connection for an external sensor

 2 765

In stock


Warning: Undefined array key "of_hide_tags" in /home/nordtecd/stage.nordtec.se/wp-content/plugins/woosuite_request_a_quote/front/class-of-front.php on line 1372

Warning: Undefined array key "of_hide_tags" in /home/nordtecd/stage.nordtec.se/wp-content/plugins/woosuite_request_a_quote/front/class-of-front.php on line 1372

Warning: Undefined array key "of_hide_tags" in /home/nordtecd/stage.nordtec.se/wp-content/plugins/woosuite_request_a_quote/front/class-of-front.php on line 1372

Warning: Undefined array key "of_hide_tags" in /home/nordtecd/stage.nordtec.se/wp-content/plugins/woosuite_request_a_quote/front/class-of-front.php on line 1372

In stock

SKU: 0572 1752 Categories: , , , , , Tags: , ,

testo 175 T2 - two-channel data logger for temperature

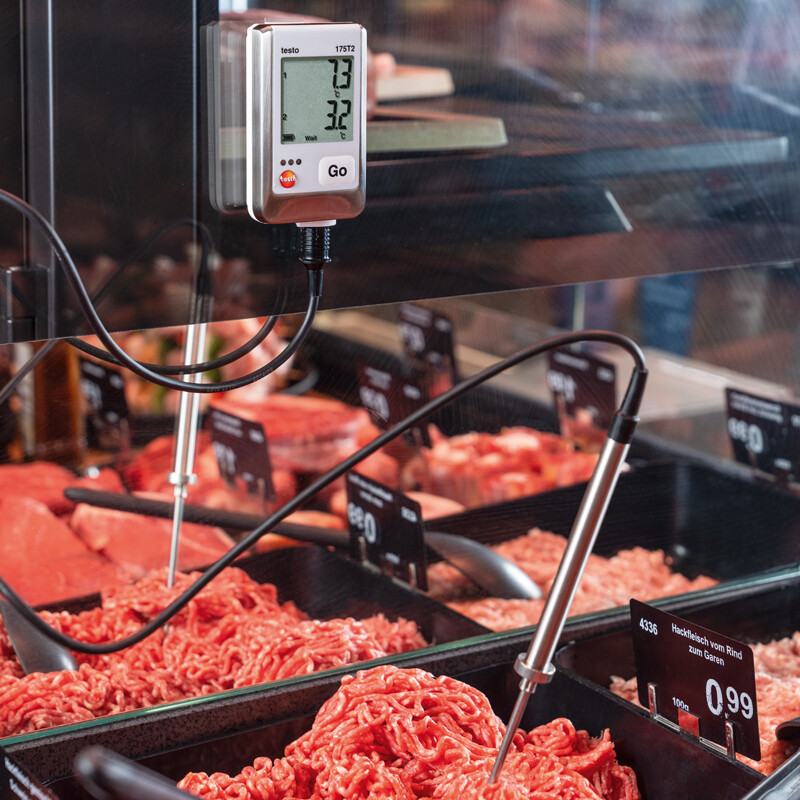

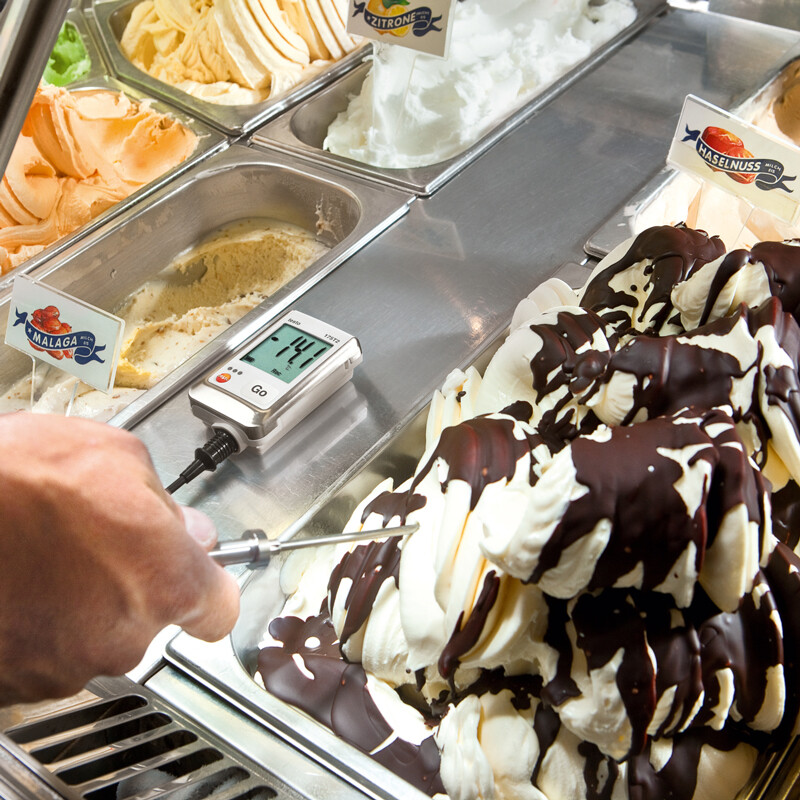

The testo 175 T2 temperature logger has an internal sensor and a connection for an external temperature sensor. This means that it is ideally suited for use when you not only want to record the indoor temperature but also want to perform a simultaneous temperature check such as the following core temperature measurement in a product. This is useful when storing and processing food. For example: the ambient conditions of your products in storage areas and cold rooms, and at the same time control the temperature of the product itself with e.g. a plug-in sensor (optional). Temperature measurement in the gaps between packages is also possible. The measurement data from both channels is securely stored in your temperature logger.

Technical features and practical benefits

  • Efficient reading via USB or SD card
  • -40... +120°C
  • Internal NTC sensor and connection for an external sensor
  • Secured measurement data at low battery voltage
  • Battery indication
  • User-friendly Swedish software
  • Alarm, MIN/MAX function
  • Memory for 1 million measurements

Advanced measurement techniques. High data security.

The optional temperature sensors connected to the data logger are equipped with a high accuracy NTC sensor (± 0.5°C). The internal NTC sensor also has high accuracy and a measuring range of -35°C to +55°C, which means that the data logger can be used in cold rooms and freezers. The accuracy and measuring range of optional connectable temperature sensors depends on the selected sensor model. For example, measurements in higher temperature ranges (up to +120 °C) are also possible with a suitable temperature probe.

The temperature logger's display gives you a wide range of valuable information including current readings, limits and markings where these limits have been exceeded, min/max values and remaining battery power. Since all that information can be read directly on the display, there is no need to boot up your computer. In addition to these valuable features, the logger also has a super large data memory that can store up to 1 million measurements and an exceptionally long battery life of up to 3 years. This gives you the freedom to read out measurement data at longer intervals even when measurement cycles are shorter. The AAA batteries included in the delivery can be replaced by the user.

You can rely on a high level of data security when using the testo 175 T2 temperature logger. Saved measurement data is not lost even if the battery is empty or replaced.

Programming the logger and analyzing the measurement data

Choose one of three software versions to program or read out your logger or to analyze the measurement data you have transferred to your computer:

  • The ComSoft Basic software - available for free download - allows you to program your logger and analyze the measurement data quickly and easily.
  • The optional ComSoft Professional software gives you additional possibilities and a more detailed analysis of the measurement values.
  • ComSoft CFR 21 Part 11 software - optional - ideal for the specific requirements of the pharmaceutical sector in accordance with 21 CFR Part 11.

Controlled and certified for use in the food sector

  • Tested according to DIN EN 12830
  • HACCP compliant and HACCP International certified
  • IP65 protected

Included in delivery

The data logger testo 175 T2 with internal sensor (NTC) and connection for an external temperature sensor, including wall mount, lock, batteries and factory protocol. ATTENTION! To program the data logger you need a USB cable which is not included in the delivery but can be ordered under the accessories tab. The measurement data can be transferred to the computer via the USB cable or to an optional SD card.

Fabriksprotokoll: utfärdas på fabriken efter en kontroll av att produkten fungerar och uppfyller angiven mätnoggrannhet. Läs om skillnaden mellan fabriksprotokoll och ackrediterad kalibrering.

The PC software ComSoft Basic can be downloaded under the "Download" tab above.

SensorNTC (internal + external)
Number of channels2 channel (1 internal, 1 external)
Measurement range-35 °C ... +55 °C (internal)

-40...+120°C (external)
Resolution0.1 °C
Accuracy±0.5 °C (-35...+55 °C) (internal)


±0.3 °C (-40...+120 °C) (external sensor input)
Memory1 million metrics
Log interval10 s...24 h (freely selectable)
Operating temperature-35 °C ... +55 °C
Storage temp-40 °C ... +85 °C
Battery3 AlMn AAA or Energizer
Battery life3 years (at log interval 15 min at -10...+50°C)
Dimensions89 x 53 x 27 mm
Weight130 g
Protection classIP 65
PC connectionUSB (standard to mini B)
Guarantee2 years
SoftwareTesto ComSoft Basic 5
Testo ComSoft Professional 4
Testo ComSoft CFR 21 Part 11

NTC probes

Icon
Datablad testo 175 T1-T2
2492 downloads916.32 KB
Icon
Comsoft Basic 6 (senaste version, för testo 174, 175, 176)

Comsoft Basic 6 version 6.25.40.36909

Krävs för TESTO 174T och 174H med USB-C.
Övriga loggrar fungerar på samma sätt som med tidigare versioner.

24331 downloads125 MB
Icon
Manual till Comsoft Basic

Läs manualen noggrant före installation av programvaran.

54532 downloads1.83 MB
