testo 150 TC4 – four inputs for thermocouple sensors
4 channels for thermocouples
- Wide measuring range -200...+1350 depending on the TE type and sensor
- Can store 64,000 measurements per channel
- Radio transmission with testo UltraRange (optional)
In stock
In stock

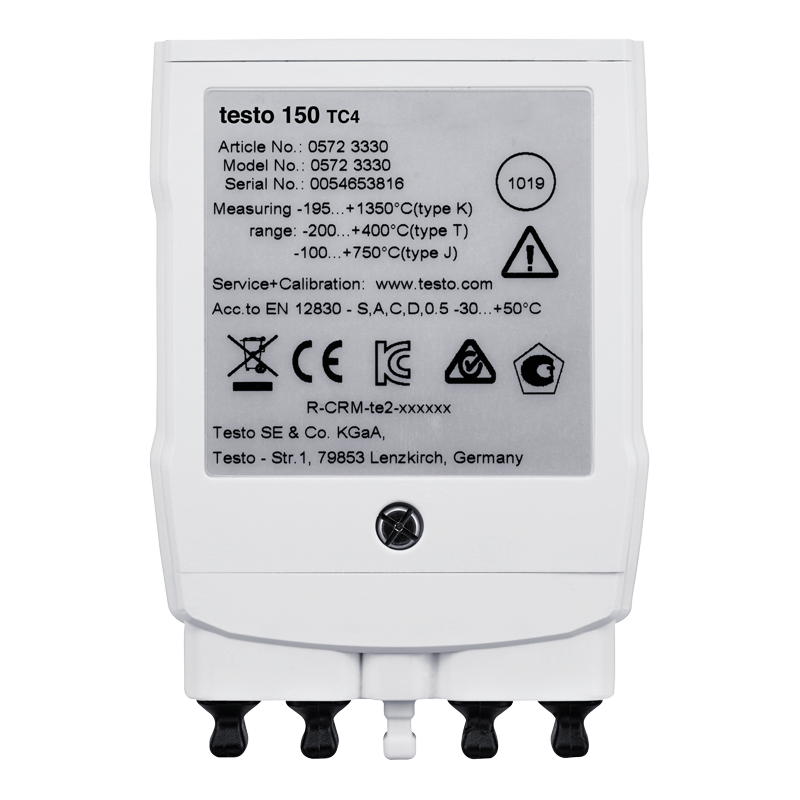

Datalogger testo 150 TC4
The data logger testo 150 TC4 is part of the measuring system testo Saveris and enables safe, simple and efficient monitoring of critical values in accordance with the strictest GxP regulations. It has four thermocouple sensor inputs and is ideal for industrial applications and measurement in extreme conditions.
Thanks to the various communication modules (see under the accessories tab), this testo 150 logger can be integrated into any existing network environment (WLAN, LAN). Optional testo UltraRange is also available, which with its wireless radio technology allows the transmission of measured values over long distances. See also the system overview on the right.
- 4 channels for thermocouples
- Wide measurement range -200…+1350 depending on TE type and sensor
- Can store 64,000 measurements per channel
- Can be integrated into any WLAN or LAN network (optional)
- Radio transmission with testo UltraRange (optional)
Briefly about the measurement system
The base station testo Saveris Base V 3.0 is the “heart” of the system. There is also a CFR software that handles all the collection, visualization and documentation of measurement data. The software includes the ‘Cockpit’ feature that gives you an unprecedented overview of the entire system. In addition to the base station and software, there is also a database, which is installed on your own server.
There are three different types of data loggers to choose from, depending on whether you want to use thermocouple sensors, analog or digital sensors. With the help of an analog converter, many more measurement quantities can be connected, such as e.g. moisture transmitters.
Advantages
- Clear and simple overview: measuring point overview with display of alarms and measured values.
- Easy access: login and sign alarms on your smartphone.
- Measurement data security: the measurement values are stored in three different places, in the base station, in the data loggers and in the database, which is located on your own server.
- Traceability: accredited calibration and audit trail functionality.
- Flexibility: several different measurement quantities °C, %RH, CO2, Pa, level etc.
- Accuracy: fully digital sensors for temperature and relative humidity.
- Borderless communication: combine radio networks, fixed (LAN) and wireless networks (WLAN) in the same measurement system.
We help from start to finish
We assist you all the way with your testo Saveris system. We take care of everything from design to installation, qualification and validation.
Our services
- Accredited field calibration on site at your premises: when it is time for calibration, we come and perform an accredited field calibration on site at your premises.
- Mapping: we can provide temperature mapping of your warehouses and premises.
- Validation: after installation and commissioning, we can offer validation of your system.
- Advice: we have extensive experience with everything from large to small measurement systems and are happy to provide any advice you need.
Included in delivery
Data logger testo 150 TC4, wall bracket, batteries and factory protocol.
The handy Cockpit function visualizes data loggers, sensors and alarms directly in floor plans of your own facility. You get an unprecedented overview of the entire measurement system and can easily see where a limit value has been exceeded.
| Display type | Segment |
| Display functions | Display of 2 measurement channels, exceeded limit values, connection status, signal strength, battery status, display can be disabled |
| Material in instrument housing | PC/PET (front) ABS+PC+10% GF/PET (back) |
| Dimensions (H x W x L) | 69.3 x 89.3 x 29.0 mm |
| Measurement range | 1. TE type K: -200 ... +1,350 °C 2. TE type J: -100 ... +750 °C 3 TE type T: -200 ... +400 °C |
| Accuracy (±1 digit) | ± (0.5 °C + 0.5% of the measured value) |
| Resolution | 0.1 °C |
| Weight | About 255 g |
| Protection class | IP 67 & IP 65 (with connected communication module: testo UltraRange and WLAN), IP 30 (Ethernet) (each without sensor) |
| Storage temperature | -40 ... +60 °C |
| Operating temperature | -40 ... +50 °C |
| Power supply | as an option via power supply & micro-USB (0572 5004) |
| Battery type | 4 AA alkaline batteries (manganese) At temperatures below +10 °C batteries of type Energizer LI (0515 0572) are recommended |
| Battery life | testo UltraRange: up to five years WLAN: 2.5 years (1 hour transmission interval, 15 min measurement interval, +25 °C, 1 type K sensor connected) |
| Connections | 4 thermocouples (type K, J, T) Micro USB TCI (Testo Communication Interface) |
| Log interval | 5 s ... 24 h (LAN Ethernet communication) 1 min ... 24 h (testo UltraRange radio communication or WLAN) |
| Channels | 4 |
| Internal storage (per channel) | my. 64,000 measurement values |
| Data transfer | 5 s ... 24 h (Ethernet communication) 1 min ... 24 h (testo UltraRange or WLAN) |
| Wall mount | Included |
Thermocouple probes type K
-
Air, surface and insertion sensors
1 605 Art.nr 0602 5093Sensor set to perform temperature measurements in many different applications
- Sensor type: TE type K
- Measuring range: -50 ... +400°C (air sensor, dip/plug-in sensor) -50 ... +350°C (surface sensor)
- Accuracy: Class 1
- Sensor length: See technical data
- Diameter: See technical data
-
Plug-in sensor, robust with handle
735 Art.nr 0602 1293Versatile insertion sensor with robust construction and handle
- Sensor type: TE type K
- Measuring range: -60 ... 400 °C
- Accuracy: Class 2
- Sensor length: 114 mm
- Diameter: 4 mm
-
Plug-in sensor, thin with fast response time
1 750 Art.nr 0628 0026Waterproof sensor for measurements without visible measuring holes
- Sensor type: TE type K
- Measuring range: -60 ... 250 °C
- Accuracy: Class 1
- Sensor length: 150 mm
- Diameter: 1 mm
-
Stainless steel plug-in sensor
1 245 Art.nr 0602 2292Waterproof sensor suitable for measurement in food
- Sensor type: TE type K
- Measuring range: -60 ... 400 °C
- Accuracy: Class 2
- Sensor length: 125 mm
- Diameter: 4 mm
-
Plug-in sensor, fast with short probe
1 860 Art.nr 0602 2693Short plug-in sensor with handle and fast response time
- Sensor type: TE type K
- Measuring range: -60 ... 800 °C
- Accuracy: Class 1
- Sensor length: See technical data
- Diameter: See technical data
-
Long immersion sensor with protection tube
1 505 Art.nr 0628 1292Waterproof and robust dip/insert sensor with metal protection tube. Suitable for temperature control of frying oil etc.
-
Push-in sensor without handle, Teflon insulated cable
995 Art.nr 0572 90012 meter Teflon insulated cable Tmax +220 °C
- Sensor type: TE type K
- Measuring range: -40 ... 220 °C
- Accuracy: Class 1
- Sensor length: 60 mm
- Diameter: 3.6 mm
-
Plug-in sensor with steel cable
850 Art.nr 1390 0460Durable grill sensor suitable for food. Steel cable Tmax +450 °C.
- Sensor type: TE type K
- Measuring range: -30 ... 250 °C
- Accuracy: ±0.7 °C (-20 ... +70 °C), class 2 (other ranges)
- Sensor length: 100 mm
- Diameter: 3 mm
-
Push-in sensor with Teflon cable
730 Art.nr 1390 2100Flexible oven sensor, can be clamped in the oven door. Teflon insulated cable Tmax +450 °C.
- Sensor type: TE type K
- Measuring range: -30 ... 250 °C
- Accuracy: Class 1
- Sensor length: 1500 mm
- Diameter: 1.5 mm
-
Insertion sensors for compost
2 750 Art.nr 0602 1250Long robust sensor specially developed for measuring in compost
- Sensor type: TE type K
- Measuring range: -60 ... 400 °C
- Accuracy: Class 2
- Sensor length: 1250 mm
- Diameter: 8 mm
-
Doppgivare, thin with fast response time
1 255 Art.nr 0602 0493Versatile sensor with fast response time, for air and liquid
- Sensor type: TE type K
- Measuring range: -60 ... 400 °C
- Accuracy: Class 2
- Sensor length: 123 mm
- Diameter: 1.5 mm
-
Dipping sensor, thin with fast response time 1000 °C
1 535 Art.nr 0602 0593Thin diameter with fast response time and flexible probe
- Sensor type: TE type K
- Measuring range: -60 ... 1000 °C
- Accuracy: Class 1
- Sensor length: 300 mm
- Diameter: 1.5 mm
-
Dip donor, flexible +1000 °C
460 Art.nr 0602 5792Thin sensor suitable for measurement in high temperatures
- Sensor type: TE type K
- Measuring range: -40 ... 1000 °C
- Accuracy: Class 1
- Sensor length: 500 mm
- Diameter: 1.5 mm
-
Double sensor, ground +1100 °C 500 mm
850 Art.nr 0600 5793Rigid sensor suitable for measurement in high temperatures. NOTE! Normal plug, needs to be used with adapter.
- Sensor type: TE type K
- Measuring range: -200 to 1100 °C
- Accuracy: Class 1
- Sensor length: 500 mm
- Diameter: 3 mm
-
Double sensor, ground +1100 °C 1030 mm
850 Art.nr 0600 5893Rigid sensor suitable for measurement in high temperatures. ATTENTION! Normal plug, needs to be used with adapter.
- Sensor type: TE type K
- Measuring range: -200 ... 1100 °C
- Accuracy: Class 1
- Sensor length: 1030 mm
- Diameter: 3 mm
-
Double sensor, stainless steel and Teflon insulated cable
755 Art.nr 0628 7533Durable sensor suitable for harsher environments
- Sensor type: TE type K
- Measuring range: -50 ... 250 °C
- Accuracy: Class 2
- Sensor length: 40 mm
- Diameter: 6 mm
-
Wire sensor Teflon insulated 30 mm
235 Art.nr 0602 0646Ideal for quick air temperature measurements
- Sensor type: TE type K
- Measuring range: -50 ... 250°C
- Accuracy: Class 2
- Sensor length: 30 mm
- Diameter: 1.5 mm
-
Wire sensor kapton insulated 1.5 m
275 Art.nr B08K-1,5-F11KXFlexible, thin sensor with fast response time. Suitable for air and surface temperature measurement.
- Sensor type: TE type K
- Measuring range: -85 ... 285 °C
- Accuracy: Class 2
- Sensor length: 1500 mm
- Diameter: 0.6 mm
-
Wire feeder PFA insulated 2 m
595 Art.nr 1390 0345Very thin and flexible sensor suitable for measuring in small volumes of liquid
- Sensor type: TE type K
- Measuring range: -75 ... 250 °C
- Accuracy: Class 2
- Sensor length: 2000 mm
- Diameter: 0.08 mm
-
Wire sensor fiberglass insulated 5 m
450 Art.nr C09K-5,0-F11KXDurable sensor for temperatures up to +400 °C
- Sensor type: TE type K
- Measuring range: -50 ... 400 °C
- Accuracy: Class 2
- Sensor length: 5000 mm
- Diameter: 1 mm
-
Wire sensor Teflon insulated 2 m
950 Art.nr 1390 3125Durable sensor suitable for measurement in harsh environments. Stainless steel probe and Teflon insulated cable Tmax +250 °C
- Sensor type: TE type K
- Measuring range: -100 ... 250 °C
- Accuracy: Class 1
- Sensor length: 2000 mm
- Diameter: 3 mm
-
Wire sensor PVC insulated 1.5 m
230 Art.nr A10K-1,5-F11KXSuitable for measuring air temperature, measurements in refrigerators and water temperatures
- Sensor type: TE type K
- Measuring range: -40 ... 105 °C
- Accuracy: Class 2
- Sensor length: 1500 mm
- Diameter: 3 mm
-
Wire feeder fiberglass insulated 800 mm
305 Art.nr 0602 0644Durable sensor for temperatures up to +400 °C
- Sensor type: TE type K
- Measuring range: -40 ... 400 °C
- Accuracy: Class 2
- Sensor length: 800 mm
- Diameter: 1.5 mm
-
Wire sensor PVC insulated 5 m
295 Art.nr A10K-5,0-F11KXSuitable for measuring air temperature, measurements in refrigerators and water temperatures
- Sensor type: TE type K
- Measuring range: -40 ... 105 °C
- Accuracy: Class 2
- Sensor length: 5000 mm
- Diameter: 3 mm
-
Thermocouple wire PVC insulated (by meter)
30 Art.nr A82KFor self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -30 ... 105 ° C
- Accuracy: Class 2
- Diameter: 3 mm
-
Fiberglass insulated wire sensor 1500 mm
235 Art.nr 0602 0645For temperatures up to +400°C.
-
Thermocouple wire PVC insulated 25 m
575 Art.nr A10K-25For self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -30 ... 105 ° C
- Accuracy: Class 2
- Sensor length: 2500 mm
- Diameter: 3 mm
-
Thermocouple wire PVC insulated 50 m
1 095 Art.nr A10K-50For self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -30 ... 105 ° C
- Accuracy: Class 2
- Sensor length: 5000 mm
- Diameter: 3 mm
-
Thermocouple wire PVC insulated 100 m
1 995 Art.nr A10K-100For self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -30 ... 105 ° C
- Accuracy: Class 2
- Sensor length: 10000 mm
- Diameter: 3 mm
-
Thermocouple wire fiberglass insulated 25 m
595 Art.nr C09K-25For self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -50 ... 400 ° C
- Accuracy: Class 2
- Sensor length: 2500 mm
- Diameter: 1 mm
-
Thermocouple wire glass fiber insulated 50 m
1 250 Art.nr C09K-50For self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -50 ... 400 ° C
- Accuracy: Class 2
- Sensor length: 5000 mm
- Diameter: 1 mm
-
Thermocouple wire fiberglass insulated 100 m
1 950 Art.nr C09K-100For self-built transducers buy to contact
- Sensor type: TE type K
- Measuring range: -50 ... 400 ° C
- Accuracy: Class 2
- Sensor length: 10000 mm
- Diameter: 1 mm
-
Air sensor, robust with handle
980 Art.nr 0602 1793Robust sensor with handle suitable for measuring in air ducts
- Sensor type: TE type K
- Measuring range: -60 ... 400 °C
- Accuracy: Class 2
- Sensor length: 115 mm
- Diameter: 4 mm
-
Radiant heat sensor
5 520 Art.nr 0602 0743Used as part of the measurement of operational temperature
- Sensor type: TE type K
- Measuring range: 0 ... 120 ° C
- Accuracy: Class 1
- Diameter: 150 mm
-
Surface sensor with magnet +170 °C
2 475 Art.nr 0602 4792For use on metal surfaces. Adhesive force approx: 20 N.
- Sensor type: TE type K
- Measuring range: -50 ... 170 °C
- Accuracy: Class 2
- Sensor length: 35 mm
- Diameter: 20 mm
-
Surface sensor with magnet +400 °C
2 745 Art.nr 0602 4892For use on metal surfaces. Adhesive force approx: 10 N.
- Sensor type: TE type K
- Measuring range: -50 ... 400 °C
- Accuracy: Class 2
- Sensor length: 75 mm
- Diameter: 21 mm
-
Surface sensor for pipes Ø 15-25 mm
1 045 Art.nr 0602 4692Transducer with handle for measuring on pipes with diameter 15-25 mm
- Sensor type: TE type K
- Measuring range: -50 ... 100 °C (Briefly 130 °C)
- Accuracy: Class 2
-
Surface sensor for pipes Ø max 120 mm
735 Art.nr 0628 0020Velcro sensor for measuring on pipes with a maximum diameter of 120 mm
- Sensor type: TE type K
- Measuring range: -60 ... 120 °C
- Accuracy: Class 2
- Sensor length: 395 mm
- Diameter: 20 mm
-
Surface sensor for pipes Ø 5-65 mm
2 085 Art.nr 0602 4592Spring loaded sensor with interchangeable measuring head for pipe diameters 5-65 mm
- Sensor type: TE type K
- Measuring range: -60 ... 130 °C (Briefly +280 °C)
- Accuracy: Class 2
-
Mini surface temperature probe
840 Art.nr 0602 0092Used directly with instruments or as a spare measuring head for tube sensors 0602 4592
- Sensor type: TE type K
- Measuring range: -60 ... 130 °C
- Accuracy: Class 2
-
Surface sensor with rigid measuring tip +1000 °C
1 785 Art.nr 0602 0693Waterproof sensor with flat measuring tip for flat surfaces. Suitable for high temperatures.
- Sensor type: TE type K
- Measuring range: -60 ... 1000 °C
- Accuracy: Class 1
- Sensor length: 150 mm
- Diameter: 2.5 mm
-
Surface sensor with rigid measuring tip
980 Art.nr 0602 1993Waterproof with flat measuring tip for flat surfaces
- Sensor type: TE type K
- Measuring range: -60 ... 400 °C
- Accuracy: Class 2
- Sensor length: 115 mm
- Diameter: 5 mm
-
Surface sensor with spring-loaded measuring tip
1 885 Art.nr 0602 0393Also suitable for measuring on uneven and curved surfaces
- Sensor type: TE type K
- Measuring range: -60 ... 300 °C (briefly 500 °C)
- Accuracy: Class 2
- Sensor length: 115 mm
- Diameter: 12 mm
-
Surface sensor, angled with spring-loaded measuring tip
2 290 Art.nr 0602 0993Also suitable for measuring on uneven and curved surfaces
- Sensor type: TE type K
- Measuring range: -60 ... 300 °C (briefly 500 °C)
- Accuracy: Class 2
- Sensor length: 80 + 50 mm
- Diameter: 12 mm
-
Sensors for low temperatures
560 Art.nr 0602 5793Flexible measuring tip, 500 mm long, Ø 1,0 mm. Suitable for temperature measurement in e.g. liquid nitrogen, low temperature freezing down to -196°C. The connector can withstand temperatures from -30 to +110 °C.
Thermocouple probes type T
-
Insertion sensor with handle
350 Art.nr 0603 1080Waterproof sensor, suitable for food. Standard sensor for testo 108.
- Sensor type: TE Type T
- Measuring range: -50 ... 300 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 90 mm
- Diameter: 3 mm
-
Plug-in sensor, robust with handle
725 Art.nr 0603 1293Waterproof, versatile plug-in sensor with handle and robust construction
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 110 mm
- Diameter: 4 mm
-
Push-in sensor, stainless steel PVC insulated cable
1 315 Art.nr 0603 2192Waterproof sensor, IP67, PVC cable Tmax +70 °C for measurement in food
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 125 mm
- Diameter: 4 mm
-
Push-in sensor, stainless steel Teflon insulated cable
1 825 Art.nr 0603 3392Waterproof sensor, IP67, Teflon insulated cable Tmax +200 °C for measurement in food
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 125 mm
- Diameter: 4 mm
-
Plug-in sensor, thin with fast response time
1 125 Art.nr 0628 0027Fast insertion sensor for measurement without visible measuring holes. Suitable for measuring in food.
- Sensor type: TE Type T
- Measuring range: -50 ... 250 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C)
- Sensor length: 150 mm
- Diameter: 1.4 mm
-
Push-in sensor, Teflon insulated cable
1 545 Art.nr 0628 0030Suitable for measurement in oven. Teflon insulated cable Tmax +250 °C.
- Sensor type: TE Type T
- Measuring range: -50 ... 250 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 60 mm
- Diameter: 1.4 mm
-
Plug-in sensor with special handle
1 580 Art.nr 0603 2492Robust food sensor with special handle, reinforced cable
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 115 mm
- Diameter: 3.5 mm
-
Insertion sensor, corkscrew
2 080 Art.nr 0603 3292Robust frozen food sensor with corkscrew tip
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 30 mm
- Diameter: 4 mm (8 mm)
-
Plug-in sensor with Teflon-insulated cable
730 Art.nr 1390 2000Fast and flexible plug-in sensor suitable for measurement in ovens and cooling processes. Cable Tmax +210 °C.
- Sensor type: TE Type T
- Measuring range: -30 ... 250 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C)
- Sensor length: 100 mm
- Diameter: 1.5 mm
-
Plug-in sensor with steel cable
850 Art.nr 1390 0450Durable grill sensor with steel cable Tmax +450 °C (not waterproof)
- Sensor type: TE Type T
- Measuring range: -30 ... 250 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C)
- Sensor length: 100 mm
- Diameter: 3 mm
-
Dip probe, thin with flexible probe
825 Art.nr 0628 0023Thin flexible sensor for fast temperature measurements
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.5 °C (-40 ... 133 °C) class 1 (other areas)
- Sensor length: 500 mm
- Diameter: 1.5 mm
-
Dip donor, flexible -200°C
950 Art.nr 1390 0500Suitable for temperature measurement in low temperatures such as liquid nitrogen and low temperature freezers
- Sensor type: TE Type T
- Measuring range: -200 ... 40 °C
- Accuracy: class 3
- Sensor length: 500 mm
- Diameter: 1.5 mm
-
Low temperature dipping sensor -200 °C
1 220 Art.nr 1390 1000Suitable for temperature measurement in low temperatures such as liquid nitrogen and low temperature freezers
- Sensor type: TE Type T
- Measuring range: -200 ... 40 °C
- Accuracy: Class 3
- Sensor length: 1000 mm
- Diameter: 1.5 mm
-
Wire feeder PVC insulated 500 mm
260 Art.nr 1390 0005Suitable for measuring air temperature, measurements in refrigerators and water temperatures
- Sensor type: TE Type T
- Measuring range: -30 ... 105 °C
- Accuracy: Class 1
- Diameter: 1.5 mm
-
Wire sensor PVC insulated 1.5 m
295 Art.nr 1390 0010Suitable for measuring air temperature, measurements in refrigerators and water temperatures
- Sensor type: TE Type T
- Measuring range: -30 ... 105 °C
- Accuracy: Class 1
- Diameter: 1.5 mm
-
Wire sensor Teflon insulated 1.5 m
395 Art.nr 1390 0013Robust sensor suitable for measurement in harsh environments. Can be drawn into refrigerators and freezers.
- Sensor type: TE Type T
- Measuring range: -50 ... 250 °C
- Accuracy: Class 2
- Diameter: 2 mm
-
Wire guide Teflon insulated 5 m
695 Art.nr B13TX-5,0-F11TXRobust sensor suitable for measurement in harsh environments. Can be drawn into refrigerators and freezers.
- Sensor type: TE Type T
- Measuring range: -75 ... 250 °C
- Accuracy: Class 1
- Diameter: 2 mm
-
Wire sensor Teflon insulated 2 m
995 Art.nr 1390 2125Durable sensor suitable for measurement in harsh environments. Stainless steel probe and Teflon insulated cable Tmax +250 °C.
- Sensor type: TE Type T
- Measuring range: -100 ... 250 °C
- Accuracy: Class 1
- Diameter: 2 mm
-
Wire guide Teflon insulated 6 m
1 095 Art.nr 1390 2160Durable sensor suitable for measurement in harsh environments. Stainless steel probe and Teflon insulated cable Tmax +250 °C.
- Sensor type: TE Type T
- Measuring range: -100 ... 250 °C
- Accuracy: Class 1
- Diameter: 2 mm
-
Wire sensor kapton insulated 1.5 m
295 Art.nr 0603 0646Flexible, thin sensor with fast response time. Suitable for low temperature, air and surface temperature measurement.
- Sensor type: TE Type T
- Measuring range: -85 ... 285 °C
- Accuracy: Class 1 (±0.5°) -40 ... +285 °C, Class 3 (±2.5°) below -40 °C
- Diameter: 0.6 mm
-
Wire sensor kapton insulated 2 m
325 Art.nr B08T-2-F11TXFlexible, thin sensor with fast response time. Suitable for low temperature, air and surface temperature measurement.
- Sensor type: TE Type T
- Measuring range: -85 ... 285 °C
- Accuracy: Class 1 (±0.5°) -40 ... +285 °C, Class 3 (±2.5°) below -40 °C
- Diameter: 0.6 mm
-
Wire sensor kapton insulated 3 m
425 Art.nr B08T-3-F11TXFlexible, thin sensor with fast response time. Suitable for low temperature, air and surface temperature measurement.
- Sensor type: TE Type T
- Measuring range: -85 ... 285 °C
- Accuracy: Class 1 (±0.5°) -40 ... +285 °C, Class 3 (±2.5°) below -40 °C
- Diameter: 0.6 mm
-
Wire sensor kapton insulated 5 m
595 Art.nr B08T-5-F11TXFlexible, thin sensor with fast response time. Suitable for low temperature, air and surface temperature measurement.
- Sensor type: TE Type T
- Measuring range: -85 ... 285 °C
- Accuracy: Class 1 (±0.5°) -40 ... +285 °C, Class 3 (±2.5°) below -40 °C
- Diameter: 0.6 mm
-
Wire sensor kapton insulated 10 m
950 Art.nr B08T-10-F11TXFlexible, thin sensor with fast response time. Suitable for low temperature, air and surface temperature measurement.
- Sensor type: TE Type T
- Measuring range: -85 ... 285 °C
- Accuracy: Class 1 (±0.5°) -40 ... +285 °C, Class 3 (±2.5°) below -40 °C
- Diameter: 0.6 mm
-
Thermocouple wire PVC insulated 25 m
395 Art.nr A10TX-25For self-built transducers buy to contact
- Sensor type: TE Type T
- Measuring range: -30 ... 105 °C
- Accuracy: Class 2
- Diameter: 3 mm
-
Thermocouple wire PVC insulated 50 m
695 Art.nr A10TX-50For self-built transducers buy to contact
- Sensor type: TE Type T
- Measuring range: -30 ... 105 °C
- Accuracy: Class 2
- Diameter: 3 mm
-
Thermocouple wire PVC insulated 100 m
1 195 Art.nr A10TX-100For self-built transducers buy to contact
- Sensor type: TE Type T
- Measuring range: -30 ... 105 °C
- Accuracy: Class 2
- Diameter: 3 mm
-
Wire feeder PVC insulated 10×10 meters
1 495 Art.nr A10TX-10For self-built transducers buy to contact
- Sensor type: TE Type T
- Measuring range: -30 ... 105 °C
- Accuracy: Class 2
- Diameter: 3 mm
-
Air sensor, robust with handle
1 020 Art.nr 0603 1793Air sensor for measuring temperature in rooms and air ducts
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 110 mm
- Diameter: 4 mm
-
Surface sensor with rigid measuring tip
1 035 Art.nr 0603 1993Waterproof sensor with flat measuring tip for flat surfaces, such as grill plates
- Sensor type: TE Type T
- Measuring range: -50 ... 350 °C
- Accuracy: ±0.2 °C (-20 ... 70 °C), class 1 (other areas)
- Sensor length: 110 mm
- Diameter: 6 mm
-
testo Saveris PROF
Art.nr 0572 0181Software (PC) testo Saveris Professional
- Alarm management incl. management of escalations.
- Extended analysis capabilities without data export to CSV file (optional).
- Individual reporting based on current rules and user preferences.
- Automatic reports that can be distributed e.g. to an email list.
- User management based on Windows user groups in Windows Active Directory.
- Management of calibration
- The basic version includes up to 5 advanced users, more can be purchased.
- Simple, intuitive and platform-independent - Geographically hierarchical structure that allows you to zoom in on complex systems with a large number of measurement locations.
- Access to current measurement data and alarm acknowledgement via mobile, tablet or laptop.
- Customization of the system by uploading your own plans and logos.
- Unlimited number of users in the Saveris Cockpit.
Product Added to Quote Successfully.Send a request
Visa förfrågan -
testo Saveris CFR Part 11
Art.nr 0572 0182Validatable CFR software for the remote measurement system testo Saveris
- Management of alarms incl. managing escalations
- Management of calibration
- Enhanced analysis capabilities without data export to CSV file (optional) - Individual reporting based on current rules and user preferences.
- Traceability and the ERES (Electronic Records / Electronic Signatures) principle, which is based on legal requirements in accordance with 21 CFR Part 11 and EU Annex 11 of the GMP Regulation.
- Reliable user management based on different Windows user groups with their respective entries in Windows Active Directory.
- Simple, intuitive and platform-independent user interface
- Minimal investment in training, course materials and SOP documents
- Geographically hierarchical structure allowing to zoom in on complex systems with a large number of measurement sites
- Reliable user management based on customer content in Windows Active Directory
- Access management and permissions for alarm acknowledgment
- Customization of the system by uploading your own floor plans and logos.
Product Added to Quote Successfully.Send a request
Visa förfrågan -
TE adapter type T mini plugs male to female 3 m
375 Art.nr F11TX-3-F20TX3 meter TE adapter type T with mini-plug male to mini-plug female.
-
TE adapter type T mini plugs male to female 5 m
375 Art.nr F11TX-5-F20TX5 meter TE adapter type T with mini-plug male to mini-plug female.
-
Magnetic attachment for wall holders
270 Art.nr 0554 2001Magnetic bracket compatible with wall holders for the previous and new generation of data loggers in the testo Saveris Cloud series and the testo 150 series loggers.
-
LAN/PoE module
Art.nr 0554 9330LAN communication module with PoE for testo 150 loggers. The module component is mounted on a testo 150 logger for communication via fixed network (LAN) in the measurement system testo Saveris. Also supports PoE, i.e. power supply via the network cable.
- Transmission interval: 5 sec ... 24 hours
- Connection: LAN
- Protection class: IP30 (when connected to a testo 150 logger)
Product Added to Quote Successfully.Send a request
Visa förfrågan -
WLAN module
Art.nr 0554 9320 01WLAN communication module for testo 150 loggers. Module component that is mounted on a testo 150 logger for communication via wireless network (WLAN) in the measurement system testo Saveris.
- Radio frequency: 2.4 GHz
- Transmission interval: 1 min ... 24 hours
- Protection class: IP67 (when connected to a testo 150 logger)
Product Added to Quote Successfully.Send a request
Visa förfrågan -
testo UltraRange module
Art.nr 0554 9311 01Modular component mounted on a testo 150 logger for communication via radio in the testo Saveris measuring system.
- Radio frequency: 868 MHz
- Transmission interval: 1 min ... 24 hours
- Protection class: IP67 (when connected to a testo 150 logger)
Product Added to Quote Successfully.Send a request
Visa förfrågan -
Power supplies & cable
766 Art.nr 0572 5004Power supply for the testo Saveris measuring system. Power supply & USB cable to data loggers, base station and gateway.
