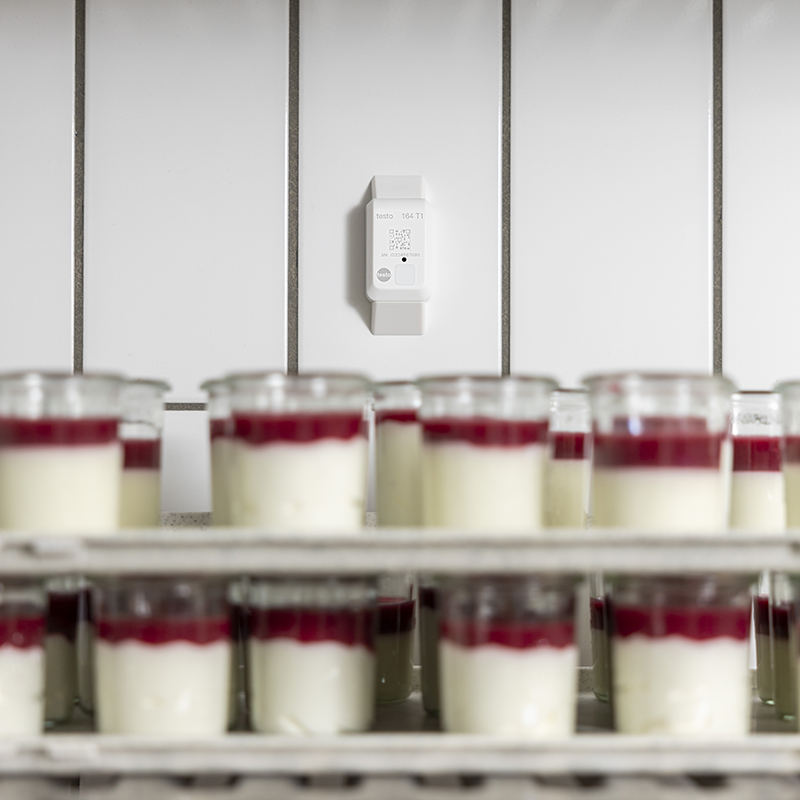

testo 164 T1 in refrigerator

testo 164 T1 – Mini data logger for temperature

Flexible temperature logger that connects to WiFi or Ethernet gateway

  • Mini data logger that connects to a dedicated gateway
  • -30 ... +70 °C
  • Battery life of 8 years
  • Measurement data is automatically stored in the cloud service via the testo 164 gateway (WiFi or Ethernet)

 1 195

Finns i lager

Finns i lager

SKU: 0572 1641 01 Categories: , , , , , , , , , Tags: ,

testo 164 T1 – Mini data logger for temperature

The testo 164 T1 is a compact and user-friendly temperature data logger, designed to be used with a testo 164 gateway. You can choose between two different gateway options: WiFi connection or Ethernet connection. Through the gateway, the loggers are connected to the testo Smart Connect cloud service, where all measurement data is automatically collected and can be accessed in real time – no matter where you are. Thanks to the fact that the data logger can be connected to a dedicated gateway with Ethernet connection, it also works in premises without WiFi. Pairing between the logger and the gateway is easy at the touch of a button and they communicate with each other via radio signal.

Small but impressive

The small testo 164 data loggers and the matching gateway with WiFi or Ethernet are a perfect team for discreet monitoring of your indoor climate.

The testo 164 T1 measures temperature with an integrated digital sensor in the range -30 °C to +70 °C and has an impressive battery life of 8 years. With its compact dimensions (62.6 × 38 × 17.5 mm) and unobtrusive design, it is easily placed in rooms or storage and display cabinets without taking up much space – ideal, for example, in exhibition environments where the loggers should do their job without being seen.

testo Smart Connect – smart and easy climate monitoring

With testo Smart Connect, climate monitoring is both simple and reliable. You simply create an account, connect your data loggers and set alarm limits – then the system takes care of everything automatically. When limits are exceeded, you’ll receive instant alerts via push notifications from the testo Smart app or email.

All measurement data from all connected data loggers is continuously transferred to the cloud and can be followed in real time via mobile, tablet or computer. The platform provides a clear overview of all measurement points in one place. If you also connect the service to the testo Smart app, you get access to additional features, such as quick configuration, easy access to data and alarms via push notifications. You can also connect WiFi loggers from the testo 160 and 162 series to the same account in the cloud – for even more flexible and integrated monitoring options.

Read this before creating an account >>

When registering a cloud account in testo Smart Connect, an email address is required. We recommend that you do not use a “personal” email address. Instead, it is better to create a “general address” that is not linked to a specific person. A suitable example could be ”info@exempel.com” or similar.

Log in to the cloud service

testo Smart ConnectLogga för testo Smart-appen







Included in delivery

Mini data logger testo 164 T1, wall bracket, QR code, factory protocol and brief user manual.

ATTENTION! To use this data logger, a testo 164 Ethernet gateway or testo 164 WiFi gateway is required.



Fabriksprotokoll: utfärdas på fabriken efter en kontroll av att produkten fungerar och uppfyller angiven mätnoggrannhet. Läs om skillnaden mellan fabriksprotokoll och ackrediterad kalibrering.



Temperature
Measurement range-30 °C...+70 °C
Resolution0.1 °C
Accuracy±0.5 °C
Connectivity
StandardSub 1 GHz (IEEE 802.15.4)
Wireless Range50 to 120 m (Logger to Gateway)
General
Certificates/ApprovalsEN12830, HACCP, NSF
Memory300 readings
Measuring cycle & communication cycle1 min...24 h
Operating temperature-30 °C...+70 °C
Storage temp-30 °C...+70 °C
Voltage supplyBattery (non-replaceable)
Battery life8 years (measurement & communication cycle of 15 min)
Size62.6 x 38 x 17.5 mm
Weight15 g (including batteries)
Protection classIP67
Guarantee2 years
There are no probes for this item.
